High Power Pulse Power Supply Charger

Principle

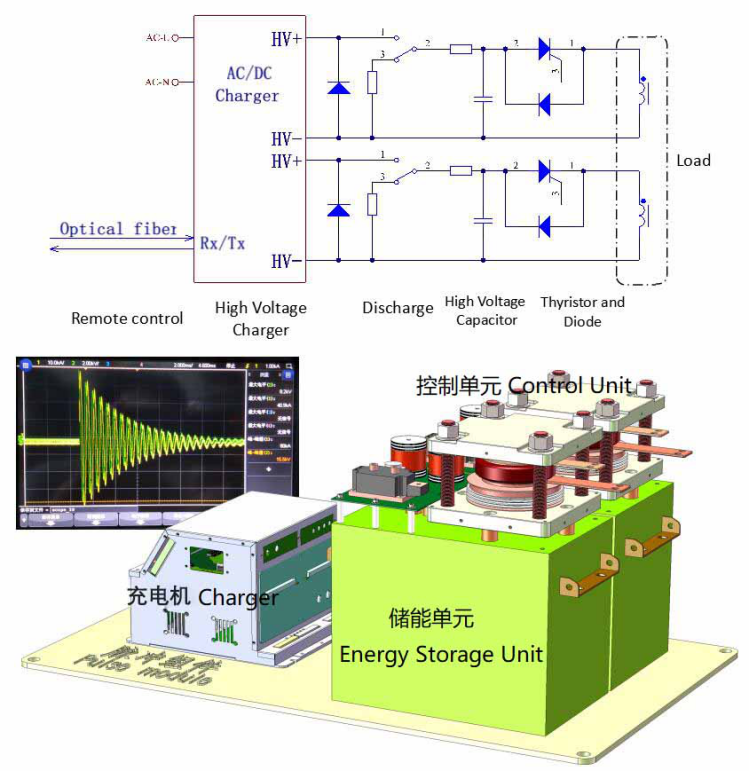

The high-voltage pulse capacitor outputs instantaneous high-power pulse current to the inductive load through the thyristor switching device. A fast and strong magnetic field in the load coil will be generated to realize the energy conversion from electric-energy to magnetic-energy to mechanical energy.  The mechanical energy will be applied into work.

Parameter

1. Rated voltage: 1KV-50KV

2. Output current: 1KA-160KA

3. Resonant frequency: ≤2.5KHz

4. Current rise rate: ＞600KA

5. Product process: small size, high energy ratio, facile structural design

Application

1. High-voltage electric power fast circuit breaker switch

2. Metal forming

3. Electromagnetic pulse blasting tool

4. Electromagnetic Aircraft Launch System

5. High-speed electromagnetic track motion system

6. Precise high energy electromagnetic damped system
